Submit deploys the topology into your Alginte instance and starts it immediately. On the Community edition the confirmation says so explicitly:
Stream ‘your-app-id’ started (ephemeral — Community deployments do not survive a restart).

​
The Streams page

Streams lists every deployed stream with its state. Click one to open its detail page — the URL is stable and shareable, keyed by the application.id (e.g. /streamDetails/wordCount).

​
The detail page

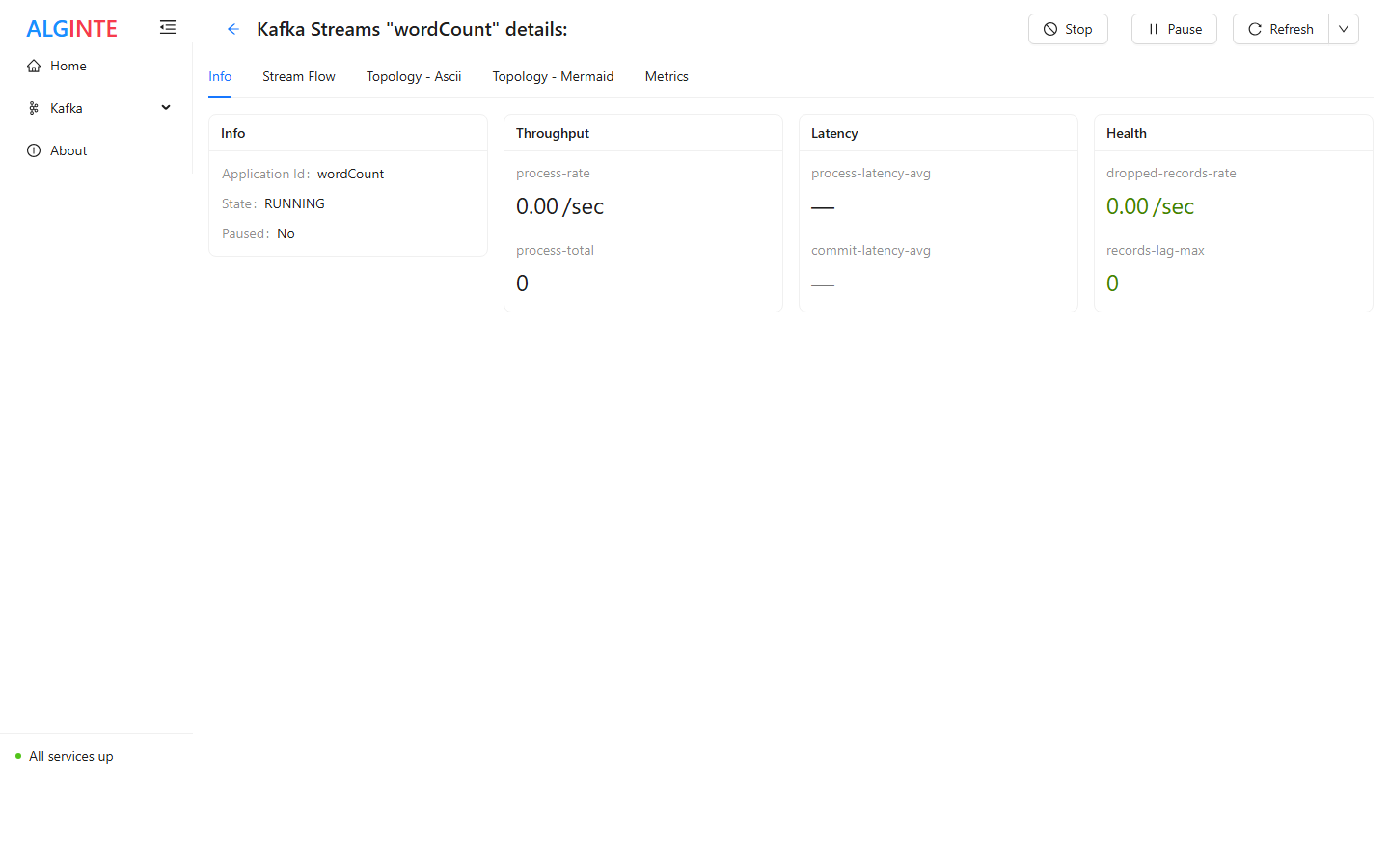

A running stream: state, throughput, and health at a glance; Stop and Pause adapt to the state.

Five tabs:
  • Info — configuration and state, plus the lifecycle actions.
  • Stream Flow — the topology as you designed it, on a read-only canvas, with live per-node telemetry badges on every node.
  • Topology - Ascii / Topology - Mermaid — the built Kafka Streams topology (the Topology#describe() view), as text or a diagram: useful to see the processor graph, internal topics, and state stores the runtime actually created.
  • Metrics — runtime metrics for the stream.

​
Lifecycle actions

On the Info tab: By default, deleting removes the deployment from Alginte only — source and sink topics, changelog topics, and committed offsets all remain, so redeploying the same design under the same application.id resumes where processing left off. Checking “Also remove the stream’s state from the cluster” additionally deletes the stream’s changelog and repartition topics, its consumer group, its local state directory, and any schema-registry subjects auto-registered under those topics’ names — a later redeploy then starts from scratch. Source and sink topics are never touched either way.
If you deploy an application.id whose state is still on the cluster from an earlier deployment, Alginte asks before proceeding: Continue on this state (you’re declaring the design identical to the one that built it) or Start fresh (remove the listed state, then deploy clean).

​
When a stream shows ERROR

Two failure paths that used to be silent (before 0.7.0) are explicit:
  • A source topic that doesn’t exist blocks Submit with a message naming the missing topic(s) — create the topic first, or fix the name on the source node.
  • A source topic deleted after deploy shows the stream as ERROR. Kafka Streams cannot recover from a missing source topic (its processing threads shut down permanently), and older versions displayed such a stream as REBALANCING indefinitely. The state now reflects reality; the fix is to recreate the topic (or correct the design) and Stop/Start the stream.

​
Restarts and the edition behaviour

Where deployments live differs by edition:
  • Community — deployments are ephemeral: a restarted Alginte instance comes up with no deployed streams. Your recovery path is the design JSON — Download it while building, then Upload and Submit again after a restart. Processing continues from the cluster-side committed offsets and state; nothing is lost but the redeploy click.
  • Professional (not yet available — join the release list) — deployments are durable: persisted next to your cluster and automatically restored, in their last state, when the instance starts.

​
Scaling out

Deploying the same design (same application.id) on several self-contained Alginte instances scales it the standard Kafka Streams way — the instances join one consumer group and split the partitions. Each instance manages its own deployment; see Running multiple instances.
